PA 3xGS35b

 The power amplifier below is designed by OK1DIX giving 3kW output power key down. I personally made all the mechanical construction and parts. It is really BIG GUN for 8×14XP antenna system both polarity fed simultaneosly on 2m EME operation. /click on picture for ZOOM /

im000038-nahled

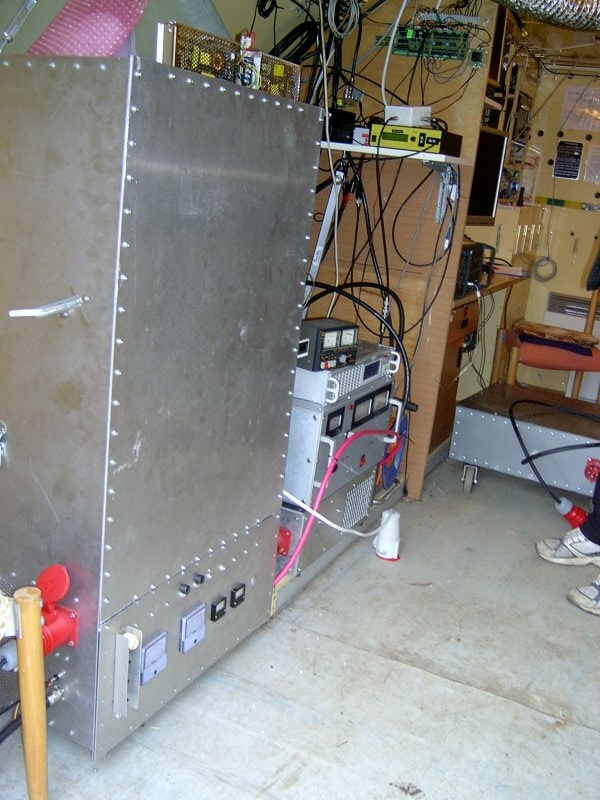

PA view

im000040-nahled

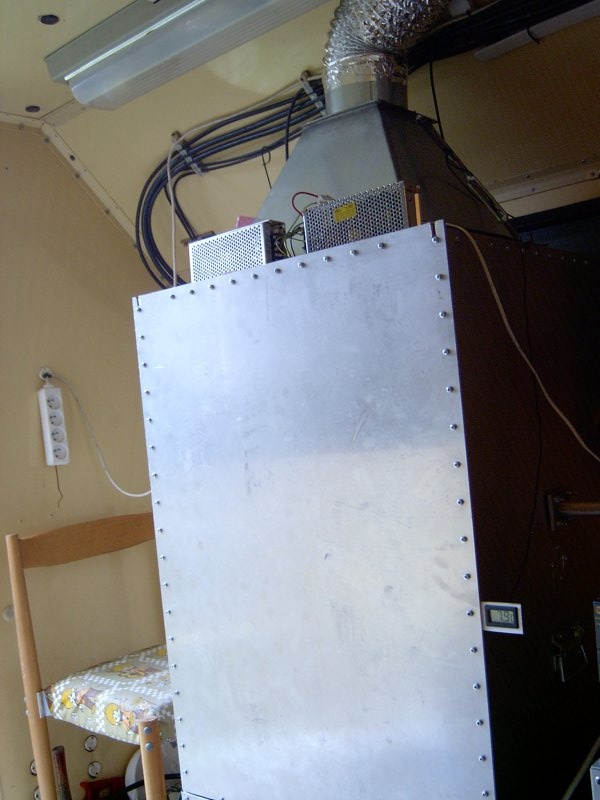

PA upper part

im000039-nahled

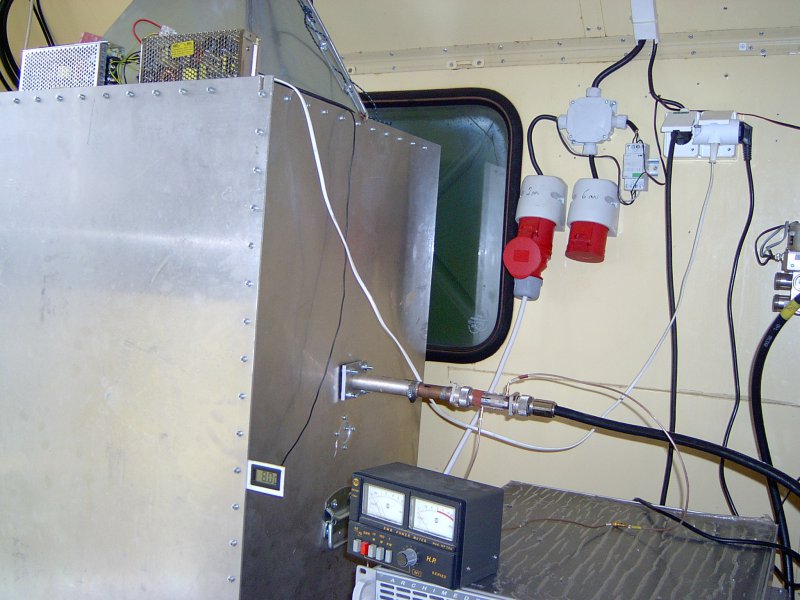

PA antenna coupling

im000048-nahled

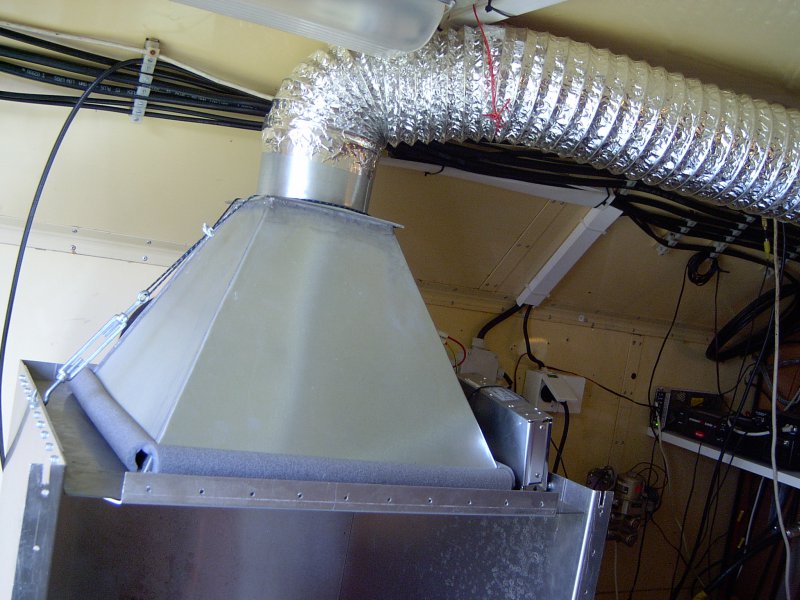

PA cooling

im000041-nahled

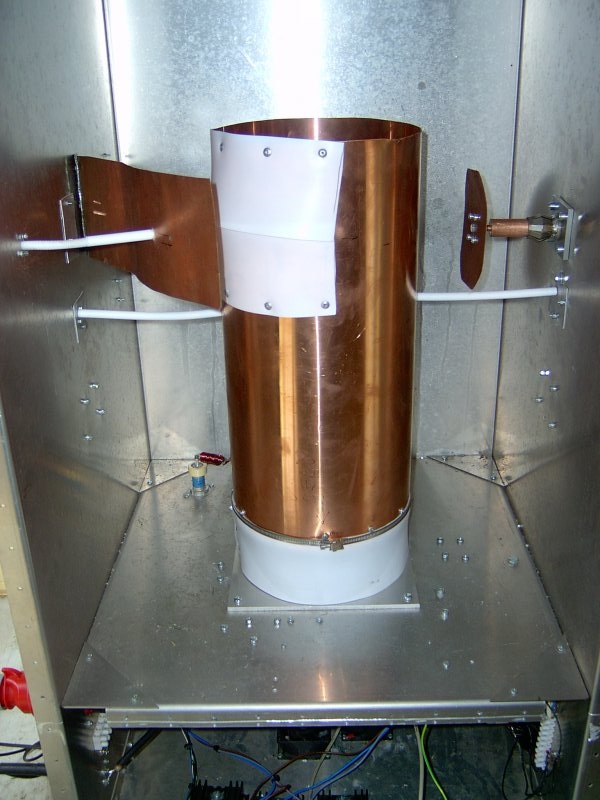

PA resonator

im000043-nahled

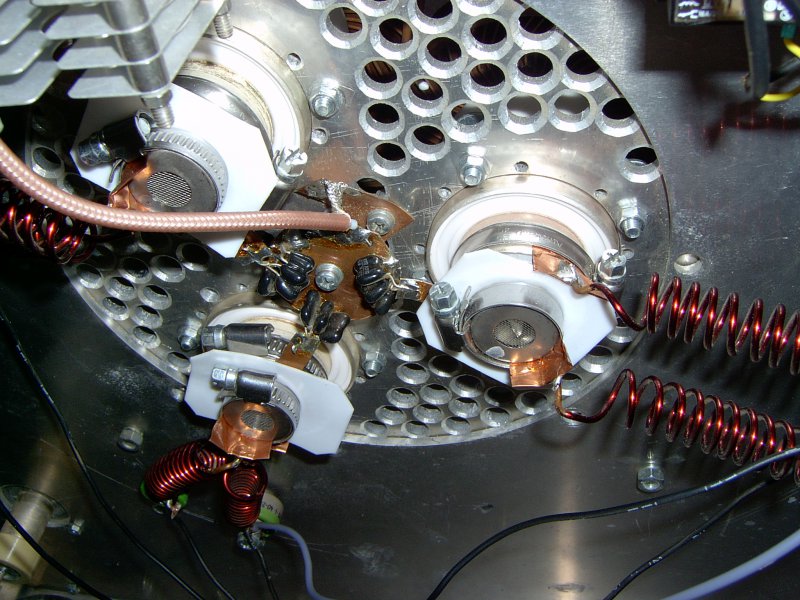

PA excitation

im000046-nahled

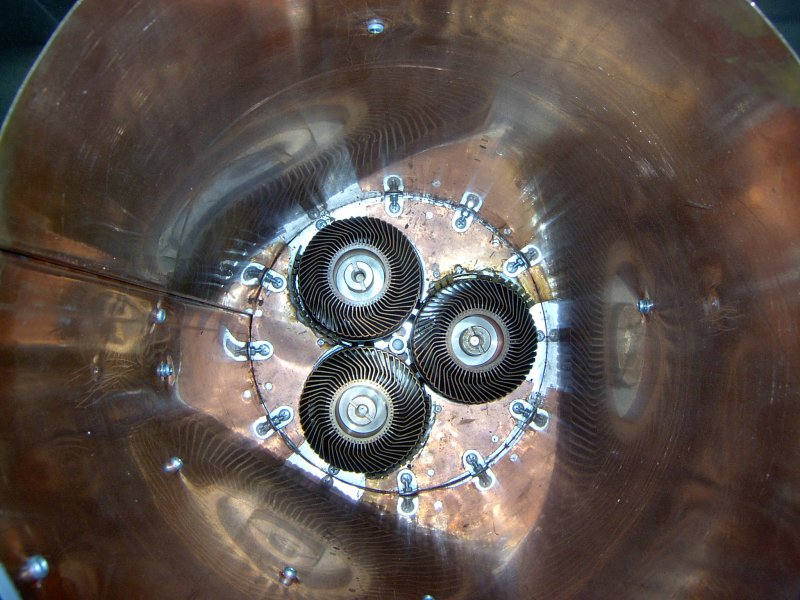

PA 3×GS35B

im000045-nahled

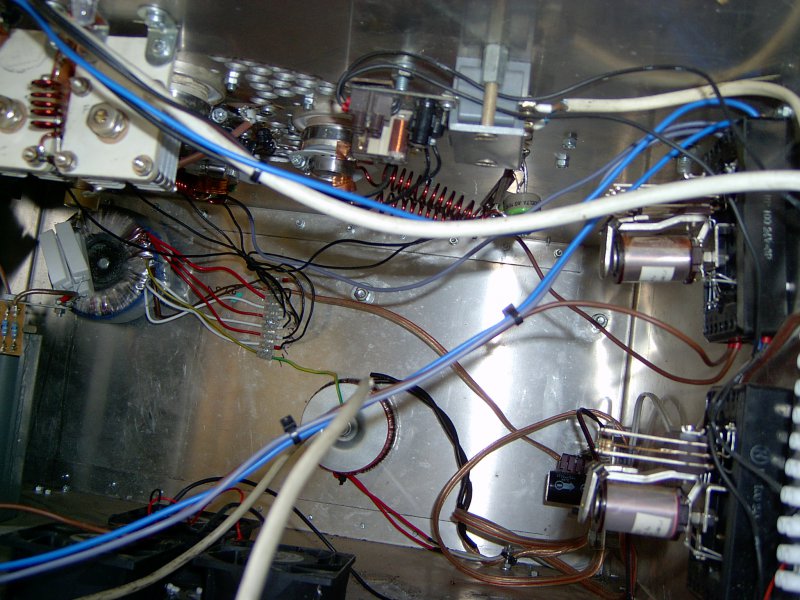

PA feeding
